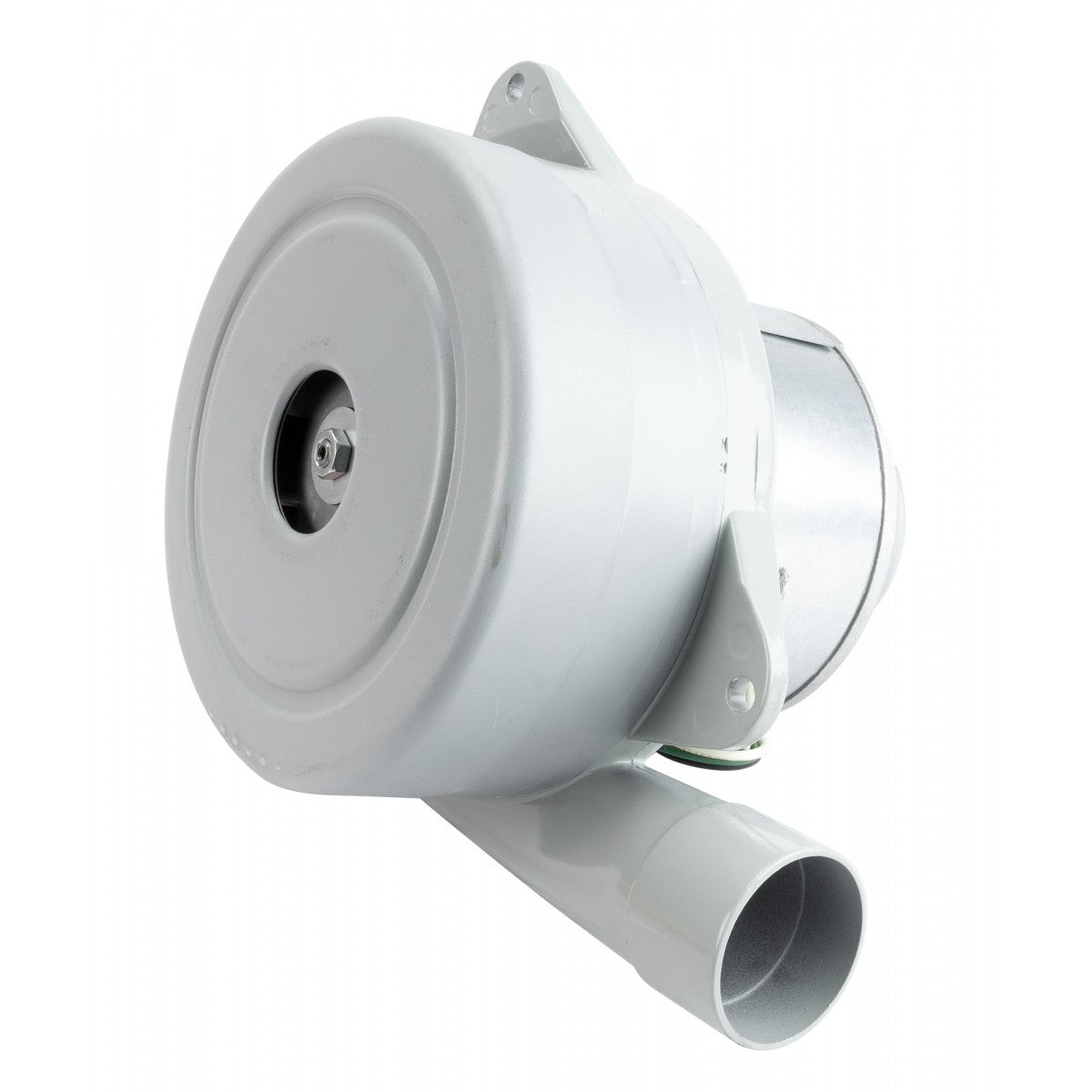

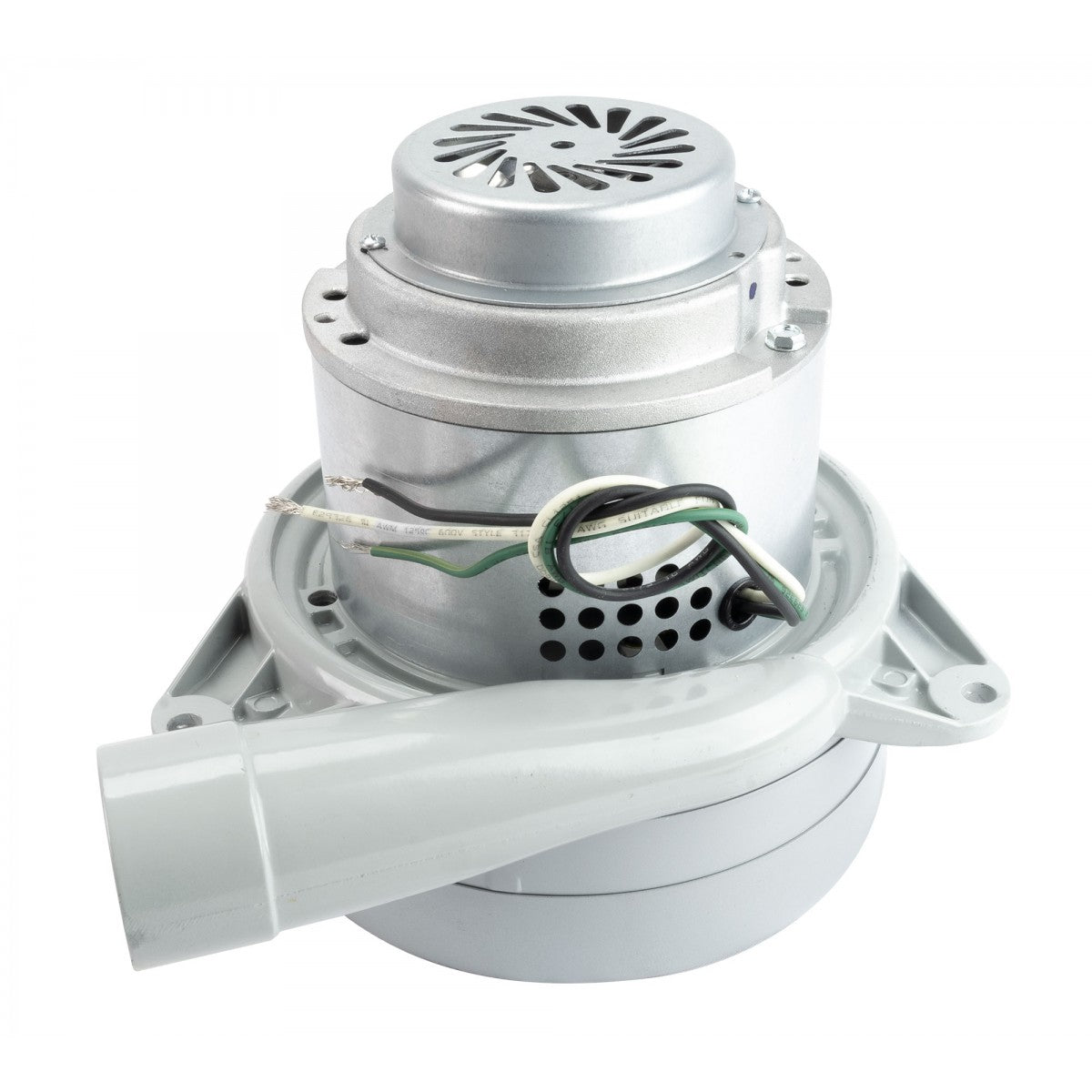

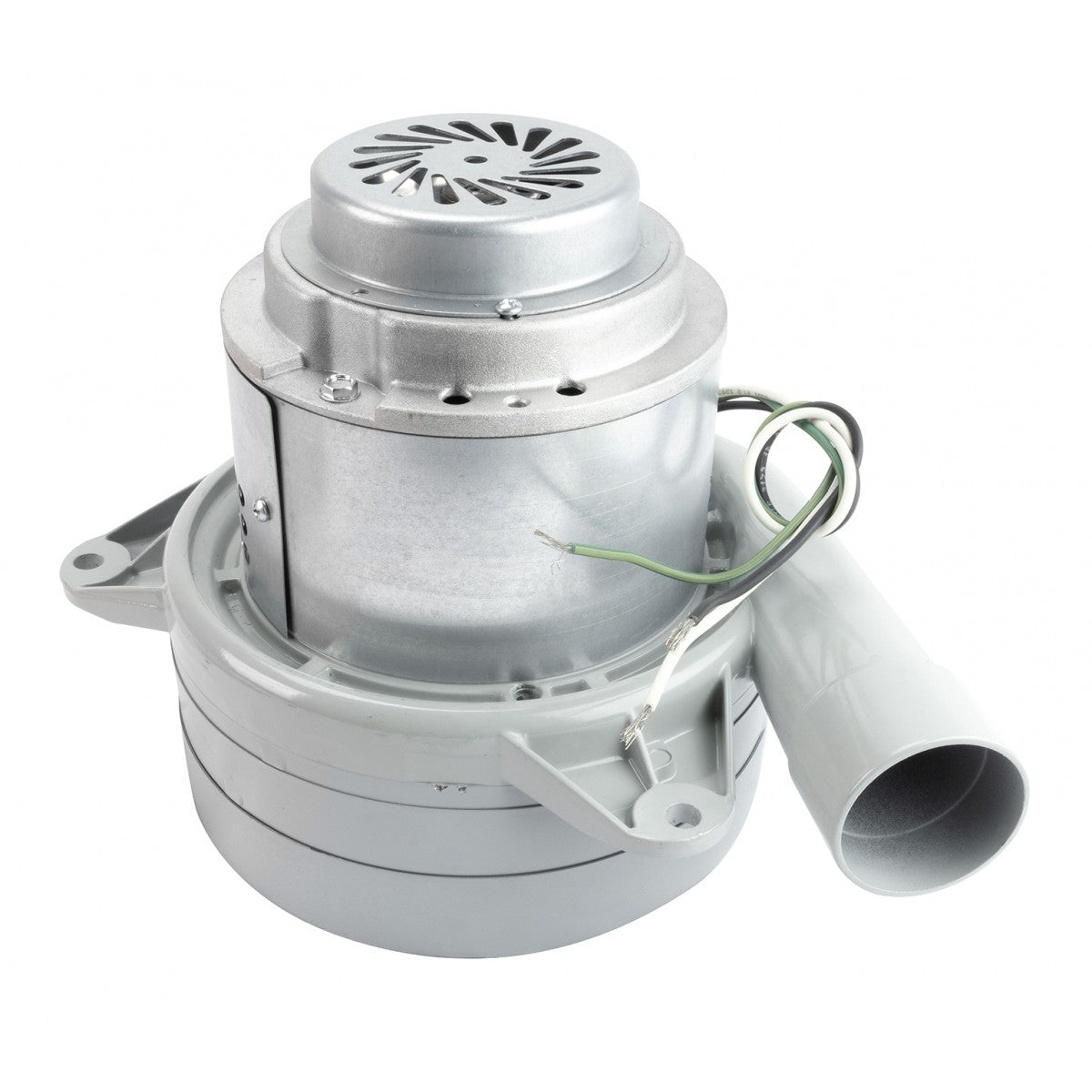

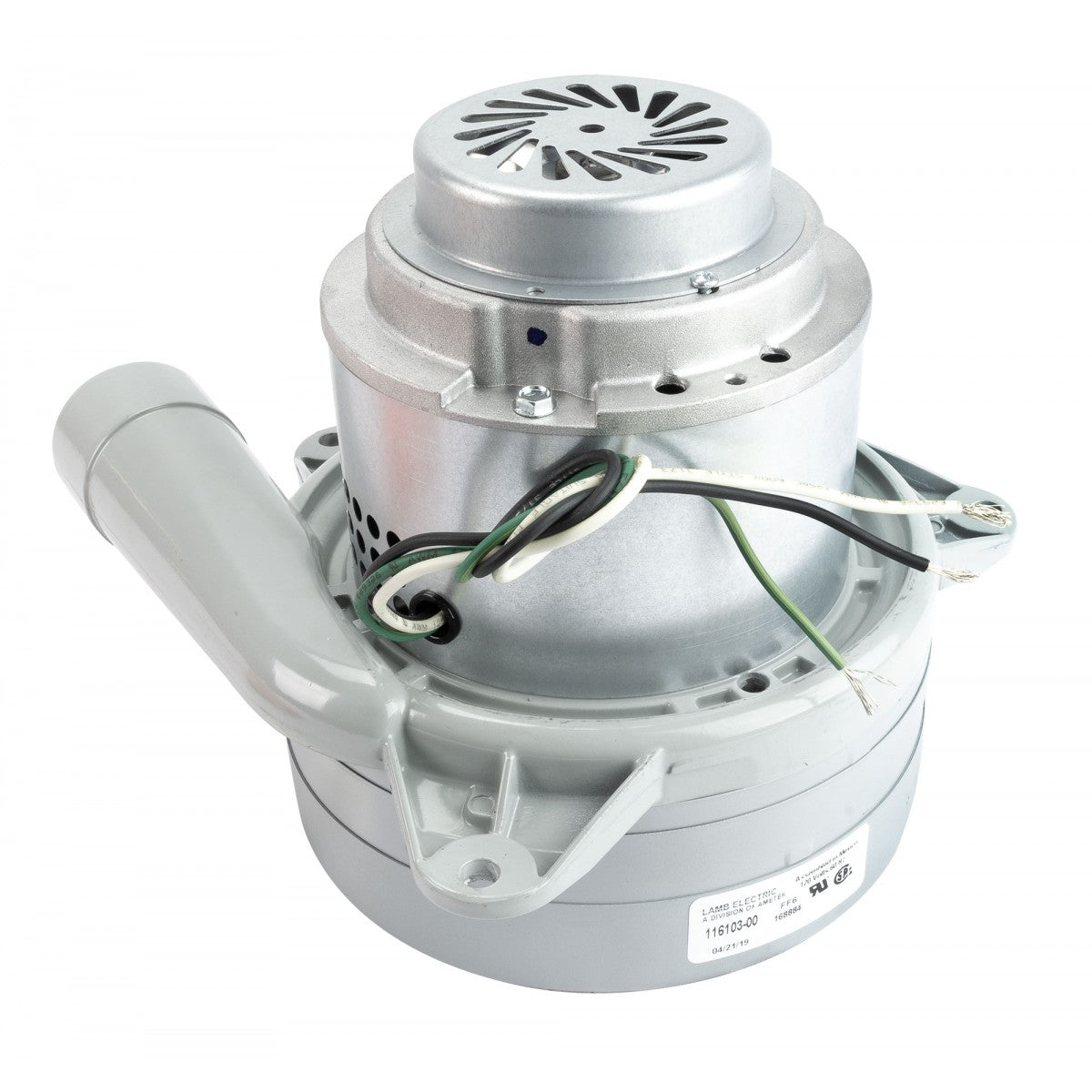

Lamb Ametek 116103-00 / 116119 (B) Motor

Ametek Lamb 116103-00 120V 3-Stage Tangential Vacuum Motor

The Ametek Lamb 116103-00 is a heavy-duty 120V, 3-stage tangential bypass vacuum motor designed for central vacuum systems and other vacuum applications requiring strong suction and reliable performance.

Featuring a 7.2-inch motor diameter, double ball-bearing construction and a tangential bypass discharge, the 116103-00 separates the working vacuum air from the motor cooling air. Its durable aluminum fan-end bracket is designed to help reduce vibration, while the epoxy-painted fan case provides additional protection and durability.

This is a genuine Ametek Lamb motor and is ideal as a replacement when your existing motor is marked 116103-00 or has been confirmed as compatible with this model.

Features & Specifications

• Manufacturer: Ametek Lamb

• Part Number: 116103-00

• Voltage: 120V AC

• Frequency: 50/60 Hz

• Motor Diameter: 7.2" (183 mm)

• Stages: 3

• Speed: Single speed

• Motor Type: Bypass

• Discharge: Tangential

• Bearings: Double ball bearing

• Maximum Airflow: Approx. 92.1 CFM

• Maximum Sealed Vacuum: Approx. 134" H₂O

• Maximum Air Watts: Approx. 403 AW

• Full Load Current: Approx. 13.7 amps

• Fan-End Bracket: Aluminum

• Fan Case: Epoxy painted

• Bearing Protection: Air-sealed bearing design

• Application: Clean, dry, filtered air only

Important Compatibility Information

Vacuum motors that look similar are not necessarily interchangeable. Please verify the manufacturer part number on your existing motor before ordering.

If you are unsure whether the Ametek Lamb 116103-00 is correct for your vacuum, contact us with the make and model of your vacuum and the numbers printed on your existing motor. We will be happy to help confirm compatibility before you order.

Installation Notice

This is an electrical replacement component intended for proper installation in compatible equipment. Installation should be performed by someone familiar with vacuum motor replacement and electrical servicing.

Please verify compatibility before ordering. Electrical components and repair parts may not be returnable once installed or connected.
